Technical Specifications:

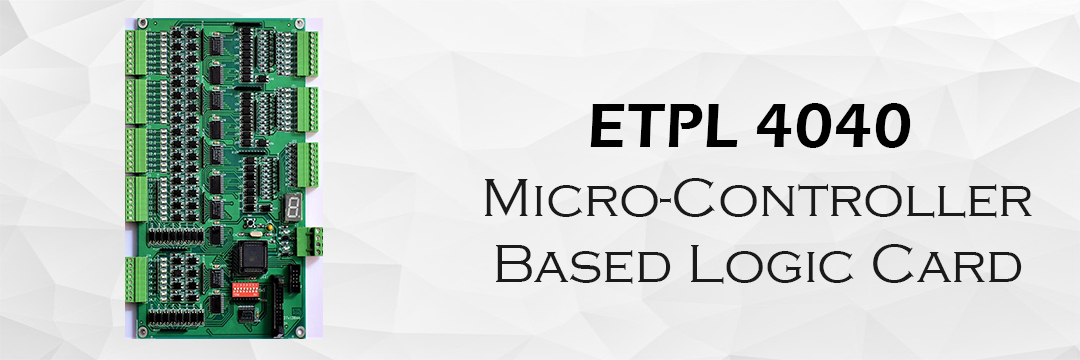

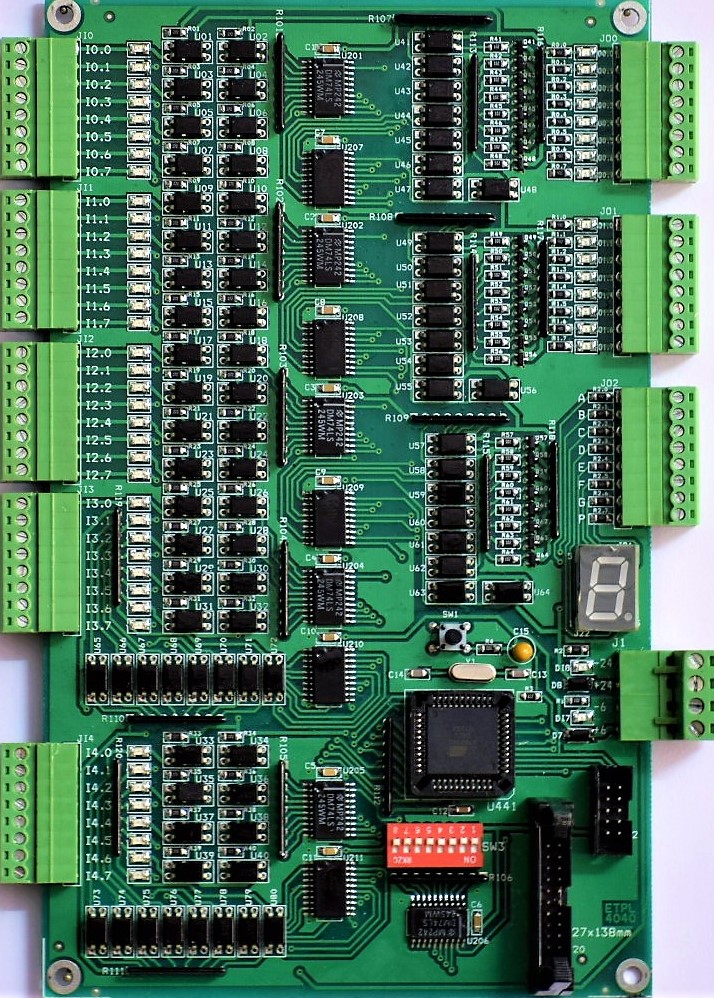

• Single board card with micro controller with 40nos. discrete inputs and 40nos discrete outputs




• Manufacturing by modern robotic pick & place machine soldering for SMD & Wave soldering for DIP components under anti-static environment




• No. of stops : up to 7 stops (G+7 single collective with ARD logic) selection by jumpers




• No. of stops : up to 15 stops by expansion module




• Display output : G+7, B+G+6, P+7, P+G+6 selection by jumpers




• Door operation : manual or auto-door selection by jumper




• Auto-door Timer : 5,10,15 seconds selection by jumpers




• Power supply : 24.8V dc & 5.8V dc with reverse bias protection




• Suitable to VFD for Gear or Gearless machine & Hydraulic machine




• ARD system logic for 1-phase/2-phase UPS backup




• 3-reed operation for floor management




• NC type Interlocks, Safety limits inputs




• Function likes auto/attend, fire, emergency stop, non-stop, passenger o/l, inspection, auto fan etc.




• Status of all inputs and outputs through LEDs




• All signals are opto-isolated
